Arches

52. Introduction Of Arch - The figurines or arches are used in structures as a way of decorating the windows and doors of their building and their makeup is created from inti or rock or its own bits or R.C.C is completed using lintel. This layout of decoration, since masonry is suggested over. Thus the material's grade is used in its composition concerning quality. That is because compression pressure is generated from the rock pieces together with all the wedge or into the face at the arch, and the load is transmitted into the ends of the arch. That is neither tired nor ruined, the propensity of its element restrain or to restrict the effects of the force Problems is to be pushed to the walls. The wall ought to be tucked in windows or the door. Arches or stopper must be set up indoors windows or doors close to this wall's corner. The stop must be set up with caution near this wall's corner there is a threat of its alteration.


52.1. Definition Of Arch -  Arch can be just really actually a structure made by cubes of brick or concrete.  The arch ought to really be robust enough to encourage the strain.  Its own is carried by Just about every block of the arch.  And due with the other obstruct and also the arch is encouraged from abutment's immunity out of either side.  Arches doors situated near into the corner of this wall can fall out of this particular corner.  With building the doorways and doors profound arches on doorways ought to be fitted.

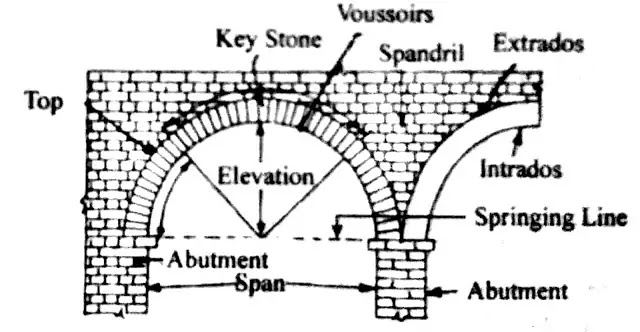

Name of Different parts of an Arch
Fig.-Name-of -Different-parts-of-an-Arch

52.2. Terms and their Definitions used in Arches Different parts of an arch are shown in figure -


The followings terms are used in the working of arches-


1. Intrados - This is the bottom curved surface of is the arch.


2. Soffits - This is the bottom surface of the arch. Many times intrados and soffits are used in place of each other.


3. Extrados - This is the upper curved surface of the arch.


4. Voussoirs - These are wedge-shaped blocks of bricks or stones used in building arches.


 5. The crown - The highest point located in the middle of the span of the arch is called the crown.


6. Keystone - The highest wedge-shaped stone located in the middle part of the arch is called the keystone.


7. Spandril - Spandril is the triangular area enclosed pt between the vertical line drawn from the springing point and tangent drawn at the crown of the lintel.


8. Skew Back- A slant portion on the abutment on JO which the arch rests is called a skewback. It is also called an oblique surface.


9. Springing Points- Curves of the arch begin from these points, or these are the points situated at the endpoints of the inner surface of the arch.


10. Springing Lines- Springing line is an imaginary line connecting both springing points of the arch.


11. Springer- The first voussoir on the springing surface of the arch is called the springing stone.


12. Abutment- Abutment is the wall made to support or rest the arch.


13. Pier- An intermediate wall built to support an arch is called a pier.


14. Haunch - The bottom semi-curved part between the skewback and crown of the arch is called a haunch.


15. Ring - This is a circular course for building an arch. An arch is made of one or more rings.


16. Bed Joints- These are joints between voussoirs which are radial from the center.


17. Span- The width of doors, windows, etc, that is covered with an arch is called the span of the arch.


18. Rise - Rise is the vertical distance between the springing lines and the highest point on the inner surface of the arch.


19. Depth or Height- This is the perpendicular distance between the intrados and extrados.


20. Thickness or Breadth of Soffit- This is a horizontal distance measured perpendicular to the main and front face of the arch.


52.3. Classification of Arches - Arches is classified as follows-

1. Shape

2. Numbers of centers

3. Material and workmanship


52.3.1. Classification According to Shape - Arches are categorized into the following types based on their shape-

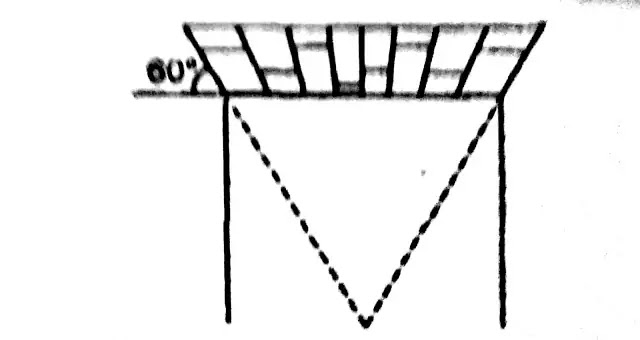

52.3.1.1. Horizontal Arch - This can be really actually just a feeble arch compared to service additional arches. It acts as a lintel. Its skew rear strains angle of sixty ° together using the flat. Also, the coating is provided altitude of 3 mm each 30 cm although lintel's area is flat.

Horizontal Arch
Fig.-Horizontal-Arch

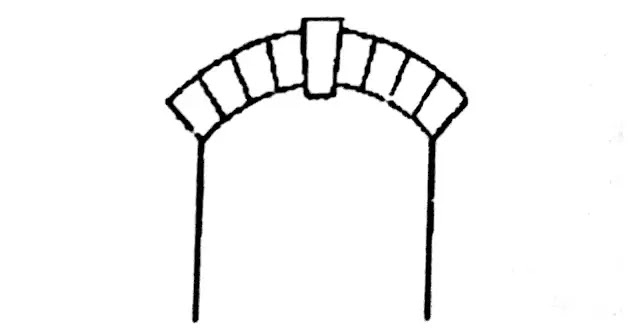

52.3.1.2. Segmental Arch - This really is an easy form of an arch.  The arch's middle is located beneath the line. This arch is useful for lengths of distinct measurements.  It's known as an arch Whether this arch has been assembled over the lintel.

Segmental Arch
Fig.-Segmental-Arch

52.3.1.3. Semicircular Arch -  This really is a much better type of arch.  Its lineup is over the line.  The curve of the arch's design will be currently semicircular.  Since the searing spine is at leadership the push is totally from the direction.

Semicircular Arch
Fig.-Semicircular-Arch

52.3.1.4. Horseshoe Arch - The arch's contour is much similar to a horseshoe.  These arches are constructed in line with the point of opinion of this artisan.

Horseshoe Arch
Fig.-Horseshoe-Arch



52.3.1.5. Pointed Arch - This can also be referred to since the arch.  Inside this, two curves match at an apex.  The triangle could be isosceles or equilateral.  An equilateral triangle can be referred to as a lancet arch.

Pointed Arch
Fig.-Pointed-Arch

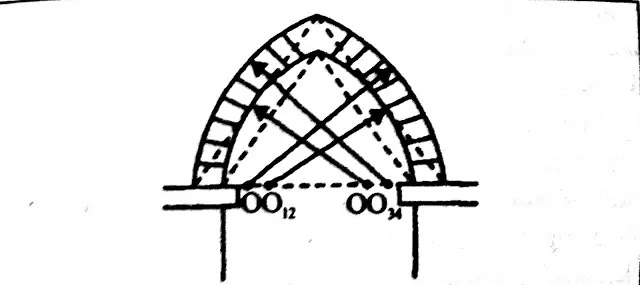

52.3.1.6. Venetian Arch - This really is another kind of the pointed arch.  The top is heavier when setting alongside this side that is.  Its four centers All is determined by the lines that are springing.

Venetian Arch
Fig.-Venetian-Arch

52.3.1.7. Florentine Arch - This really is like some Venetian arch.  The one distinction is the fact that its intrados is made of semi-circular in contour.  Most of its own three centers can be found in the lines that were springing.

Florentine Arch
Fig.-Florentine-Arch

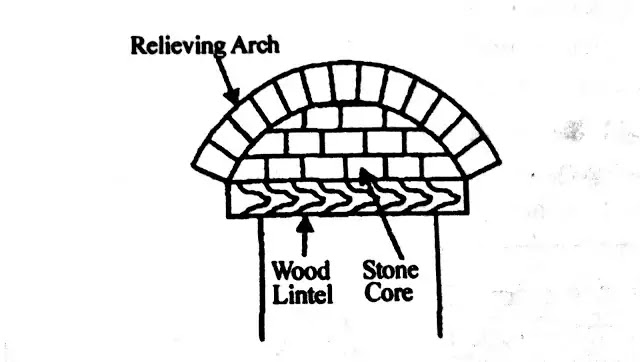

52.3.1.8. Relieving Arch - This arch is assembled in places.  This masonry over the lintel's burden doesn't collapse to the lintel however onto the arch.  Which means the depth of wood lintel is maintained tiny.  The lintel that was decomposed can be substituted without influencing this structure's firmness.  The abutment of the arch needs to commence from the lintel's borders that the incline of this skew spine extends outwards.  Inside this manner, the length of this arch needs to be corresponding for also the space between the ends of the arch and also the total amount of space that is certain.

Relieving Arch
fig.-Relieving-Arch

52.3.1.9. Stilted Arch -That really is an in-wall arch over the two increases.  The biggest market of this arch can be just actually really a line that moves via vertical rises' mind.


52.3.1.10. Semi-elliptical Arch - This arch is semi-elliptical in contour also it possesses five or three centers.

Semi elliptical Arch
Fig.-Semi-elliptical-Arch

52.3.2. Classification Based on Number of Centers – These arches are classified as follows-


52.3.2.1 One-centered Arch - Segmental, semicircular, apartment, horse-shoe, and also stilted arches come below this class. An arch is traditionally employed in windows also is also popularly known as the bull eye arch.


52.3.2.2. Pointed Arch - Pointed arch drops below this classification.  This class also has florentine along with semi-elliptical arches.

Different Lintels Based On Centers
Fig.-Different-Lintels-Based-On-Centers


52.3.2.3. Three-centered Arch - Elliptical contour arches come below this class.



52.3.2.4. Four-centered Arch-This arch includes four centers.


52.3.2.5. Five-Centered Arch - During such a lintel 5 centers produce a semi-elliptical form.


52.3.3. Classification Based on Material and Workmanship-Based on material and workmanship, arches are classified as follows -


(i) Stone arches
(a) Rubble arches
(b) Ashlar arches


(ii) Brick arches
(a) Roughed arches
(b) Axed arches
(c) Gauged arches


(iii) Concrete arches
(a) Precast concrete block arches
(b) Monolithic arches


Their descriptions are as follows-


(1) Stone Arches- Based on its workmanship, stone arches are classified into two types-


(a) Rubble Arches - All these beams are based on stripping the borders of these rocks using a Stones are forged and formed into the necessary dimensions and sorts.  They aren't powerful enough and don't own a more gorgeous overall look.  Of precisely exactly the identical depth since the arch of the stones ought to be To get an arch that is 38 cm thick.  For arches that were thicker, the rocks have been put in hammer and headers.  stretchers.

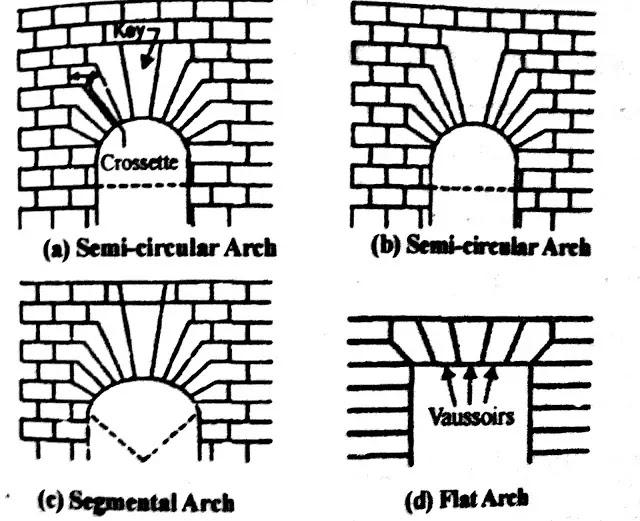

Ashlar  Arches
Fig.-Ashlar-Arches

(b) Ashlar Arches - Stones are shaped using a hammer and also then cut into the appropriate model of voussoirs.  Together side the thickness of this arch, stones have been put To get an arch.  For those archers' masonry mortar is used.  Headers' stones, along with also stretchers are put in a different route from the arch.  Two pieces of stone ought to add up to a stretcher.  Subsequently, a rock ought to be put together side the thickness of this arch In the event, the depth of rings of this arch is greater than 9-5 cm.  As a way to get the wedge contour of this rock, the arch is pre-constructed onto the system.  Following subtracting the depth of mortar joints, the dimensions of voussoirs and also this keystone is all cut-out of the arch onto the stage.  Next, the stone keystone has been all based on this style and layout and style that is arch, and also ashlar completed arch is set in its location.


(2) Brick Arch Based on the workmanship and quality of the bricks, these arches are classified into various categories  -


(a) Tough Arch -- This specific kind of arches consists of simple bricks without even being wrapped into wedge form.  The arch includes an outer coating when compared with the coating that Ever since the base joints are made perpendicular to the curve of this arch consequently.  It has joints because of that it seems unsightly in extrados.  This type of arch could be utilized in properties.  This type is called alleviating arch.

Rough Arch
Fig.-Rough-Arch

(b) Axed Arch- In that arch, every one of the rectangular bricks is all dug into wedge form.  Such an arch is perhaps not appropriate for the function.

Axed Arch
Fig.-Axed-Arch

(c) Gauged Arch - Brick is correctly woven right to leash form in making such an arch.  As the splitting of bricks can be so not difficult, kinds of bricks are all created for such an arch.  These kinds of bricks are all tender.  These bricks are garnished with adhesive as a way to get a surface and have been trimmed with all the aid of the table saw.  The depth of these joints in the intrados within the arch will be 1.6 mm.

Gauge Arch
Fig.-Gauge-Arch

(2) Concrete Arch - concrete arches are of two types -


(a) Precast Concrete Block - Arch concrete voussoir is created in these kinds of arches.  All these voussoirs brick stone and are applied while within the shape of bricks.  1:2:4 cement can be utilized to construct the blocks.


(b) Monolithic Concrete Arch - This kind of arch is commonly created for its bridges, including culvert and roofs of those properties.  Reinforced concrete isn't mandatory for arches using the size of length.  As a way to use the cement concrete prepared that growth in 5 cm each 30 cm is currently presented.  Such an arch using a length of 3-M ought to own a minimal depth of 1-5 cm.  For a joint needs to be given for each 30 cm length span.  2,3 Arch Centering Prior to assembling an arch over the length, there is a structure developed about this arrangement that creates the bottom of this arch. This arrangement is also known as the Dominion of this arch.  By organizing boards on boards at posture centering of this arch is shaped.  Means of a sand newspaper around the boards by the very surface inside the form of this intrados.  Centering of an arch disagrees depending on the material the curve and length of this arch. The energies could function as iron or timber.  Iron centering is utilized.  At which the same centering must be properly used several times for various 24, Such a centering is quite helpful in largescale work.

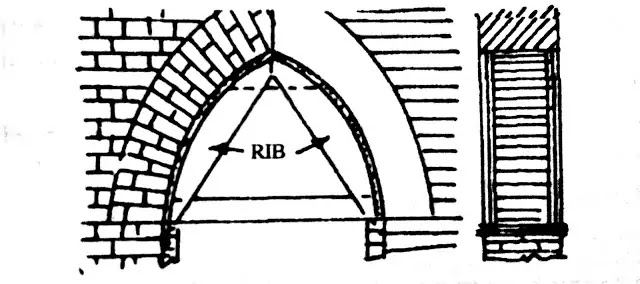

52.4. Arch Centering - Prior to swallowing Ananth in the open up arrangement is developed about this older farther the arch that this temporary arrangement will be that the arch.  Centering on the plane from the vertical position of those boards.  Even the boards have been curved by means of a sand newspaper by your of this intrados, Centeringof marsh is different bathe curve, cloth, and also the length of this arch, The containment of iron or wood out of centerings infrequently centering is quite helpful in largescale or at which the exact same centering must be properly utilized a number of times for various spots.

RIB Centering
Fig. - RIB Centering



52.5. Wooden centering is often used for doors, windows, ventilators, or similar types of work -


52.5.1. Centering with Little wood Planks- Take 2 boards of thickness, equal for the diameter of the arch's development and very small more in cargo compared to the arch. Set these parallel into each posture around the struts over the length of this arch and also close the faces of this wall-mounted socket. The glue should rounds the area of the boards out of the top at the shape of this intrados. Blend the hooks surrounding the arch to tie the parallel boards. Even the voussoirs in making an arch utilized have been all predicated on those hooks. Wedges are utilized for loosening and tightening the centering.

Centering-of-wooden-planks
Fig.-Centering-of-wooden-planks

Framed-Built-up-Centering
Fig.-Framed-Built-up-Centering

Built-Up-Centering
Fig.-Built-Up-Centering

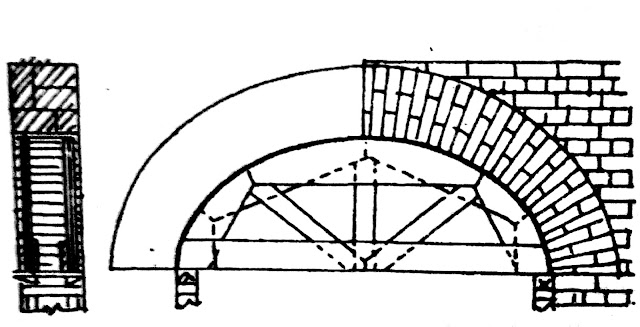

52.5.2. Centering using Large Wooden Planks - Rather than using hard planks, built-up ribs are used for an outsized span. Ribs are joined to every other by grooved joints. Struts are wont to give them support on vertical surfaces.

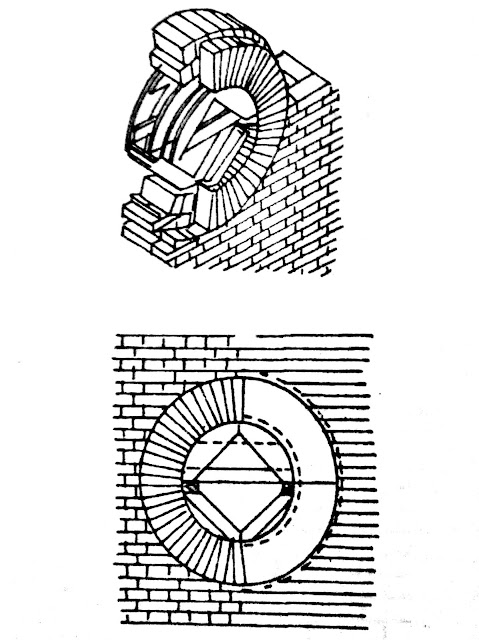

Centering using Large Wooden Planks
Fig. - Centering of A Round Arch


52.6. Arch building process -  Assessing is assembled.  Voussoirs are put working with the brick.  An individual may start expressing the stones out of skewback of the sides after which also the arch has been shut and also keystone is set on top of the arch.  After setting the keystone the centering of this arch ought to be corrected.  An individual ought to be cautious the centering isn't loose from significantly a lot greater than just 3 M M.  Loosening the centering is critical to get a rock arch.  Prior to start masonry centering ought to really be removed.  The skewback ought to be assembled after the arch.
